PTE30

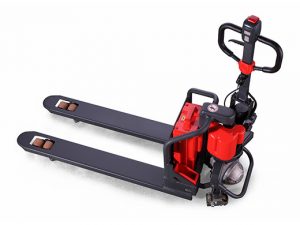

20151020112854629 (1)Smart design and exceptional value in this electric pallet truck for delivery and retail applications.

Features

  • American Curtis Travel Controller
  • Italian AMER permanent magnetic drive motor
  • Easy lift-up and replaceable 2x12V/45Ah maintenance-free batteries
  • 24” load center
  • Fork size: 27”W x 48”L 8.7″x2.8″polyurethane drive tire (Optional 9”x2.87” Rubber drive tire)
  • 3.1″x3.7″polyurethane load wheels
  • Additional stability casters standard
  • Ergonomic control handle with horn button, battery indicator as well as fault-indicator and emergency belly button
  • Finger control for traveling and lifting, gravity lowering as manual pallet jack
  • Key switch limits access to approved personnel
  • Pump motor with relief valve protects system from overloading
  • Travel speed: 2.8mph (unloaded), 2.5mph (fully loaded)
  • Optional overall fork widths: 21.3” , Fork length: 31.5”/45.3”

Download Brochure: PTE30



Parameters



Type sheet for industrial truck acc. to VDI 2198
Distinguishing mark 1.2 Manufacturer`s type designation PTE30-2748
1.3 Drive Battery
1.4 Operator type Pedestrian
1.5 Load Capacity / rated load Q (Ibs) 3000
1.6 Load centre distance c (in) 23.6
1.8 Load distance ,centre of drive axle to fork x (in) 37.2 40
1.9 Wheelbase y (in) 50.9 53.7
Weight 2.1 Service weight Ibs 375 401
2.2 Axle loading, laden front/rear Ibs 1103/1918 1125/1923
2.3 Axle loading, unladen front/rear Ibs 287/88 309/93
Tyres, chassis 3.1 Tires Polyurethane (PU)
3.2 Tire size,front Æ x w (in) Æ 8.7×2.8
3.3 Tire size,rear Æ x w (in) Æ 3.1×3.7 Æ 3.1×2.8 Æ 3.1×3.7 Æ 3.1×2.8
3.4 Additional wheels(dimensions) Æ x w (in) Æ 3.1×1.2
3.5 Wheels,number front/rear(x=driven wheels) 1x +2/ 2 1x +2/ 4 1x +2/ 2 1x +2/ 4
3.6 Tread, front b10 (in) 16.5
3.7 Tread, rear b11 (in) 15 40.7
Dimensions 4.4 Lift h3 (in) 4.5
4.9 Height of tiller in drive position min./ max. h14 (in) 33/46.7
4.15 Height, lowered h13 (in) 3.3 3.1
4.19 Overall length l1 (in) 66.4 69.1
4.20 Length to face of forks l2 (in) 21.1
4.21 Overall width b1 (in) 21.3 27
4.22 Fork dimensions s/e/l (in) 1.9/6.3/45 1.9/6.3/48
4.25 Distance between fork- arms b5 (in) 21.3 27
4.32 Ground clearance, centre of wheelbase m2 (in) 1.5 1.3
4.34 Aisle width for pallets 800X1200 lengthways Ast (in) 85
4.35 Turning radius Wa (in) 58.3 60.1
Performance data 5.1 Travel speed, laden/ unladen mph 2.5/2.8
5.2 Lift speed, laden/ unladen fph 5.9/10.4
5.3 Lowering speed, laden/ unladen fph 9.8/9.4
5.8 Max. gradeability, laden/ unladen % 4 / 10
5.10 Service brake Electromagnetic
Electric- engine 6.1 Drive motor rating  S2 60min HP 0.6
6.2 Lift motor rating at S3 10% HP 1.1
6.3 Battery acc. to DIN 43531/ 35/ 36 A, B, C, no No
6.4 Battery voltage, nominal capacity K5 V / Ah 2x12V / 45
6.5 Battery weight Ibs 62
6.6 Energy consumption acc. to VDI cycle kWh/h 0.25
Addition data 8.1 Type of drive control DC speed Control
8.4 Sound level at driver`s ear acc. to EN 12053 dB(A) <70
