SPTE33X/PTE33X 3300lbs

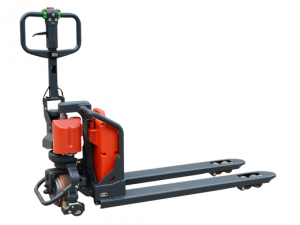

20180111012116103 (1)SPTE33X – Power Drive – Manual Lift & Lower

PTE33X – Power Drive – Power Lift & Lower

The SPTE33X & PTE33X are two innovative power pallet trucks with a 48V system designed for light-duty applications with 3300lbs capacity. These revolutionary products are the best valued power pallet trucks and were designed in order to eliminate the labor involved when using the traditional hand pallet trucks. Their compact design is ideal for use in tight spaces such as elevators, trailers, containers, as well as retail stores with narrow aisles. Both of these powered pallet trucks are equipped with an easy lift-up, interchangeable battery pack.

Capacity: 3300lbs

Battery:48V/20Ah AGM Maintenance-Free

Travel Speed:2.5/2.8mph (Loaded/Unloaded)

Service weight: 365 lbs.

Advantages

  • Skeleton concept, light in servicesweight but strong
  • Integrated handle with traveling control/Lift/Lower/Horn/Belly-button/Battery Indicator
  • Dual lift button for both right-handed or left-handed operators (PTE33X)
  • 48V/20Ah AGM Maintenance-Free Lift-Up battery pack for easy replacement
  • Suspension casters for extra stability
  • Powerful 500w drive motor with excellent speed and efficiency



Parameters



Type sheet for industrial truck acc. to VDI 2198
Distinguishing mark 1.2 Manufacturer`s type designation SPTE33X PTE33X
1.3 Drive Semi Electric Electric
1.4 Operator type
1.5 Load Capacity / rated load lbs 3300 3300
1.6 Load centre distance in 23.6 23.6
1.8 Load distance ,centre of drive axle to fork in 40 40
1.9 Wheelbase in 52.7 52.7
Weight 2.1 Service weight lbs 363 363
2.2 Axle loading, laden front/rear lbs 1345/ 2318 1345/ 2318
2.3 Axle loading, unladen front/rear lbs 282/ 81 282/ 81
Tyres, chassis 3.1 Tires Polyurethane (PU)
3.2 Tire size,front in Φ 9×2.4 Φ 9×2.4
3.3 Tire size,rear in Φ 3.15×3.66 Φ 3.15×3.66
3.4 Additional wheels(dimensions) in Φ 3.15×1.18 Φ 3.15×1.18
3.5 Wheels,number front/rear(x=driven wheels) 1x +2/ 2 1x +2/ 2
3.6 Tread, front in 16.5 16.5
3.7 Tread, rear in 20.7 20.7
Dimensions 4.4 Lift in 4.5 4.5
4.9 Height of tiller in drive position min./ max. in 33/ 49.6 33/ 49.6
4.15 Height, lowered in 3.15 3.15
4.19 Overall length in 67.6 67.6
4.2 Length to face of forks in 19.6 19.6
4.21 Overall width in 27 27
4.22 Fork dimensions in 1.9/6.3/48 1.9/6.3/48
4.25 Distance between fork- arms in 27 27
4.32 Ground clearance, centre of wheelbase in 1.46 1.46
4.34 Aisle width for pallets 800X1200 lengthways in 84.9 84.9
4.35 Turning radius in 59.8 59.8
Performance data 5.1 Travel speed, laden/ unladen mph 2.7/ 3 2.7/ 3
5.2 Lift speed, laden/ unladen fpm 6.3/ 8.85
5.3 Lowering speed, laden/ unladen fpm 17.3/ 17.3 5.9/ 5.9
5.8 Max.gradeability, laden/ unladen 3.5/ 20
5.1 Service brake Motor Braking+EPB(Optional)
Electric- engine 6.1 Drive motor rating  S2 60min HP 0.67 0.67
6.2 Lift motor rating at S3 10% HP 1
6.3 Battery acc. to DIN 43531/ 35/ 36 A, B, C, no No
6.4 Battery voltage, nominal capacity K5 48V / 20
6.5 Battery weight lbs 66 66
6.6 Energy consumption acc. to VDI cycle 0.2
Addition data 8.1 Type of drive control AC speed Control
8.4 Sound level at driver`s ear acc. to EN 12053 <60
