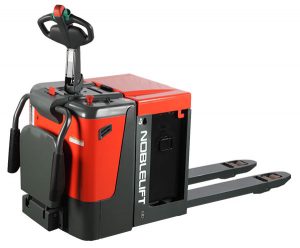

PT 55P

20150213104328742• Capacity of 5500 lbs, AC drive

• Fast travel speed 5.6mph laden/7.5mph unladen

• 24V/375AH battery & name brand key components



Parameters



Type sheet for industrial truck acc. to VDI 2198
Distinguishing mark 1.2 Manufacturer`s type designation   PT  55P
  Fixed Foldable platform
1.3 Power(battery, diesel, petrol, gas, manual)   Battery
1.4 Operator type   Stand Pedestrian (Stand)
1.5 Load Capacity / rated load     Q (lbs) 5500
1.6 Load centre distance   C(in) 23.6
1.8 Load distance ,centre of drive axle to fork   X (in) 38.0
1.9 Wheelbase Y (in) 62.8
Weight 2.1 Service weight lbs 2387 2090
2.2 Axle loading, laden front/rear lbs 3421/4466 3014/4576
2.3 Axle loading, unladen front/rear lbs 1947/4 1606/484
Tires, chassis 3.1 Tires   Polyurethane (PU)
3.2 Tire size,front φ x w (in) φ9.8×3.2
3.3 Tire size,rear φ x w (in) φ3.2×3.2
3.4 Additional wheels(dimensions) φ x w (in) φ4.9×2.4
3.5 Wheels,number front/rear(x=driven wheels)   1×+2/4
3.6 Tread, front               b10 (in) 20.9
3.7 Tread, rear  b11 (in) 14.4/20.2
Dimensions 4.4 Lift height h3 (in) 4.7
4.9 Height of tiller in drive position min. / max. h14 (in) 48.6 39.6/56.9
4.15 Height, lowered h13 (in) 3.3
4.19 Overall length  l1 (in) 105 83.5
4.20 Length to face of forks  l2 (in) 59.7 38.2
4.21 Overall width b1 (in) 31.1
4.22 Fork dimensions  s/e/l (in) 2.4/6.8/45.3
4.25 Distance between fork- arms    b5 (in) 21.3/27.0
4.32 Ground clearance, centre of wheelbase m2 (in) 1.0
4.33 Aisle width for pallets 48 x 40 (L x W) Ast (in) 121.4 100.4
4.34 Aisle width for pallets 48 x 32 (L x W)     Ast (in) 115.9 94.9
4.35 Turning radius  Wa (in) 99.2 78.0
Performance 5.1 Travel speed, laden/ unladen  mph 5.6/7.5 5.9/7.8
5.2 Lift speed, laden/ unladen fpm 7.5/ 11.6
5.3 Lowering speed, laden/ unladen                      fpm 10/ 9.4
5.8 Gradeability, laden/ unladen              % 8/ 10 8/15
5.10 Service brake   Electromagnetic
Motors 6.1 Drive motor rating  S2 60min                        HP 3.9
6.2 Lift motor rating at S3 10%                           HP 3.0
6.3 Battery acc. to DIN 43531/ 35/ 36 A, B, C, no   Electromagnetic
6.4 Battery voltage, nominal capacity K5                    V/ Ah 24/ 375
6.5 Battery weight  (minimum) lbs 660
6.6 Energy consumption acc. to VDI cycle kWh/h 1.83 1.75
Ional 8.1 Type of drive control   AC- speed control
8.4 Sound level at driver’s ear acc. to EN 12053 dB(A) 69



Features

1. Powerful high quality AC drive unit ensures high performance and low maintenance. The truck does not roll backwards on ramps.

2. High traveling speed saves time and increases the handling capacity.

3. EPS- Electric power steering system.

4. Ergonomic tiller and handle bar.
By travelling with the forks backside, one hand can ergonomically reach the grip, the other holds the tiller. For both left handed and right handed operators.

download (51)

5. Key-switch, emergency switch and battery discharge indicator.

6. Diverse storage areas for stretch foils, documents or clipboards, etc..

download (52)

7. Sideways battery compartment for quick and safe battery exchange.
Because the battery compartment is lifted with the forks, various exchange heights are easy to reach.

8. High performance 3PzS DIN standard battery for long or multiple shifts.
The battery rollers minimize the forces required for exchange. Battery can be removed to the left or right side (selection).

download (57)

9. Fixed or foldable platform with protective arms. The cushioned platform ensures safety in all travelling conditions.

10. Roomy, ergonomic and safely fixed platform with rubber bumper.

download (58)

11. Foldable platform for higher flexibility in narrow spaces.

download (59)
