PTE45X

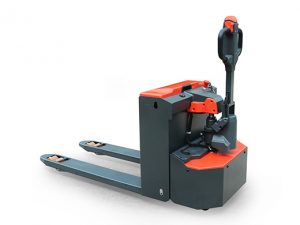

2016102000434721The economy, electric pallet truck PTE45X is the ideal choice for short-distance transportation of goods. Featuring a new unique design with powered by a 36V system with powerful traction and compact design for confined space operations. The side-battery replacement makes it easy to exchange the battery for multi-shift operation.



Parameters



Type sheet for industrial truck acc. to VDI 2198
Distinguishing mark 1.2 Manufacturer`s type designation PTE45X
1.3 Power (battery ,diesel, petrol, gas, manual) Battery
1.4 Operator type Pedestrian
1.5 Load Capacity / rated load Q lbs 4500 4500
1.6 Load centre distance c in 23.6 23.6
1.8 Load distance ,centre of drive axle to fork x in 38.0 40.7
1.9 Wheelbase y in 53.6 56.4
Weight 2.1 Service weight lbs 891.0 902.0
2.2 Axle loading, laden front/rear lbs 1727/3564 1727/3575
2.3 Axle loading, unladen front/rear lbs 693/198 693/209
Tires, chassis 3.1 Tires Polyurethane (PU)
3.2 Tire size, front Æ x w in Æ 9.5×3.1
3.3 Tire size, rear Æ x w in Æ 3.3×3.3 Æ 3.3×4.3
3.4 Additional wheels(dimensions) Æ x w in Æ3.9×1.6
3.5 Wheels,number front/ rear(x=driven wheels) 1x +2/2;+2/4 1x +-/ 2;+2/2
3.6 Tread, front b10 in 19.7
3.7 Tread, rear b11 in 14.4/20.2
Dimensions 4.4 Lift h3 in 4.5
4.9 Height of tiller in drive position min./ max. h14 in 34.6/50.8
4.15 Height, lowered h13 in 3.3 3.3
4.19 Overall length l1 in 68.9 71.7
4.20 Length to face of forks l2 in 23.6
4.21 Overall width b1 in 28.7
4.22 Fork dimensions s/e/l in 2.4/6.8/45.3 2.4/6.8/48
4.25 Distance between fork- arms b5 in 21.3/26.8
4.32 Ground clearance, centre of wheelbase m2 in 1.0 0.9
4.34 Aisle width for pallets 800X1200 lengthways Ast in 90.6 93.3
4.35 Turning radius Wa in 63.4 66.1
Performance data 5.1 Travel speed, laden/ unladen mph 2.5 / 2.5
5.2 Lift speed, laden/ unladen fpm 5.9  /9.8
5.3 Lowering speed, laden/ unladen fpm 9.8 /7.9
5.8 Max. gradeability, laden/ unladen % 4 / 10
5.10 Service brake Electromagnetic
Electric- engine 6.1 Drive motor rating  S2 60min HP 1.2
6.2 Lift motor rating at S3 15% HP 1.1
6.3 Battery acc. to DIN 43531/ 35/ 36 A, B, C, no No
no
6.4 Battery voltage, nominal capacity K5 V/ Ah 36V/ 85Ah
6.5 Battery weight lbs 220
6.6 Energy consumption acc. to VDI cycle kWh/h 0.28
Additional data 8.1 Type of drive control DC- speed control
8.4 Sound level at driver`s ear acc. to EN 12053 dB(A) 69



Features

  • Long Tiller Design
  • Small Turning Radius
  • Easy Maintenance
  • High Performance
  • Powerful Battery
  • Robust Design
  • Capacity 4500Lbs

Advantages:

  • Long tiller design for easy steering
  • Unique 36V system with high performance
  • Powerful battery with 6 hours using time
  • Bigger supporting wheels for high stability
  • Side-battery replacement for easy battery change
  • Robust chassis and apron for long service life
  • Metal battery cover for better protection
  • Compact ad smart design for easy maintenance
  • High Performance
  • Comfortable operation
  • Unique 36V system
  • High performance side-battery-replacement

Unique new 36V system
36V system with high performance of the battery for longer operation approximately 6 hours

download (46)

Optional Battery Charger

Standard built-in charger and optional external charger for different customer needs.

download (47)

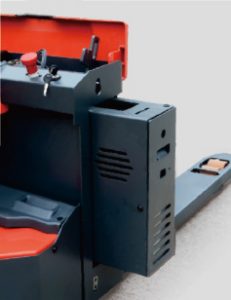

High performance side-battery-replacement

High performance 36V battery, with side battery replacement easy for battery replacement and maintenance.

download (48)

Long tiller design for ergonomics and safety

Ergonomic long tiller design for comfortable and efficient operation, keep a safe distance for the operator ensures safety

download (49)

Integrated hydraulic pump
One-piece integrated hydraulic pump with compact size.
Bigger Steering wheel for stability
The bigger steering wheels ensures high stability for the pallet truck.

download (50)

Robust and reliable design
The robust chassis with the strong thick apron protects the truck and the components against mechanical impact from outside. The metal battery cover protects the battery well from outside too.
