PS 33SL

20150214102103458• Capacity 3300 lbs, AC drive

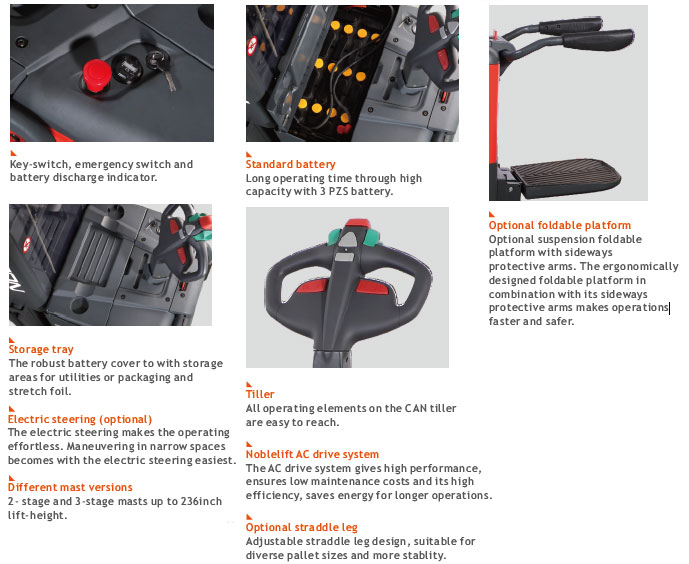

• Lift height from 114″ to 236″

• 24V/210 or 350AH battery & top brand key components

• Optional ride-on platform & safety rails

Parameters

Type sheet for industrial truck acc. to VDI 2198
Distinguishing mark 1.2 Manufacturer`s type designation   PS 33SL
196.9 114.2
1.3 Power (battery ,diesel, petrol, gas, manual)   Battery
1.4 Operator type   Pedestrian
1.5 Load Capacity / rated load Q (lbs) 3307
1.6 Load centre distance C (in) 23.6
1.8 Load distance ,centre of drive axle to fork X (in) 28.4
1.9 Wheelbase Y (in) 59.8 54.6
Weight 2.1 Service weight lbs 3752 2800
2.2 Axle loading, laden front/rear lbs 3182/3877 2756/3351
2.3 Axle loading, unladen front/rear lbs 2322/1430 1816/984
Tires, chassis 3.1 Tires   Polyurethane (PU)
3.2 Tire size, front φ xW (in) φ 9.1×3.0
3.3 Tire size, rear φ xW (in) φ 3.1×2.8
3.4 Additional wheels(dimensions) φ xW (in) φ 4.9×2.4
3.5 Wheels, number front/rear(x=driven wheels)   1x+2/4
3.6 Tread, front b10 (in) 29.5 22.4
3.7 Tread, rear b11 (in) 42.9-54.7
Dimensions 4.2 Lowered mast height h1 (in) 87.4 76.8
4.3 Free lift height h2 (in) 65.4 5.9
4.4 Lift h3 (in) 194.9 112.2
4.5 Extended mast height h4 (in) 217.3 132.7
4.9 Height of tiller in drive position min./ max. h14 (in) 53.9/37.2
4.15 Height, lowered h13 (in) 2
4.19 Overall length l1 (in) 77.3 82.7
4.20 Length to face of forks l2 (in) 40.55 36.0
4.21 Overall width b1 (in) 39.4 31.3
4.22 Fork dimensions s/e/l (in) 1.2/3.9/45.3
4.25 Distance between fork- arms b5 (in) 7.9-28.3
4.32 Ground clearance, centre of wheelbase m2 (in) 1.0
4.33 Aisle width for pallets 1000X1200 lengthways Ast(in) 106.9 101.3
4.34 Aisle width for pallets 800X1200 lengthways Ast(in) 106.9 101.3
4.35 Turning radius Wa(in) 70.6 65.1
Performance data 5.1 Travel speed, laden/unladen mph 3.75/3.75
5.2 Lift speed, laden/ unladen fph 27.8/41.7 16.1/29.9
5.3 Lowering speed, laden/ unladen fph 44.7/35.0 18.7/21.3
5.8 Max. gradeability performance, laden/ unladen % 6/12
5.10 Service brake   Electromagnetic
Electric engine 6.1 Drive motor rating S2 60min HP 1.77
6.2 Lift motor rating at S3 15%         HP 4.1 3.01)
6.3 Battery acc. to DIN 43531/35/36  A, B, C, no   B,3PzS B,2PzS
6.4 Battery voltage, nominal capacity K5   V/Ah 24/350 24/210
6.5 Battery weight lbs 635.5 478.4
6.6 Energy consumption acc. to VDI cycle kWh/h 2.36
Additional data 8.1 Type of drive control   AC- speed control
8.4 Sound level at driver’s ear according to EN 12053 dB(A) 69
