4 Wheel FE4P N Series

20170324003115281The new N Series Electric Forklift
The creative, intuitive and elegant design of the N Series makes it a coveted ride for the operators, the rugged exterior molding of the metal covers delivers styling as well as safety. The excellent ergonomic design offers exceptional reliability, easy maintenance, efficient and comfortable operation; with a focus on safety and environmental responsibility.

Download Brochure: FE4P35N-77N Series



Parameters



Identification 1.1 Manufacture Noblelift Noblelift
1.2 Manufacturer’s type designation FE4P35N FE4P38N
1.3 Drive type: electric (battery or mains), diesel, petrol gas, manual) electric electric
1.4 Type of operation (hand, pedestrian, standing, seated, order-picker) seated seated
1.5 Load capacity/rated load Q(lbs) 3520 3850
1.6 Load centre distance C(in) 19.7 19.7
1.8 Load distance,centre of drive axle to fork x(in) 15 15
1.9 wheelbase y(in) 59.1 59.1
 Weights 2.1 Service weight incl. battery (see line 6.5) lbs 6864 7392
2.2 Axle loading ,laden front/rear lbs 888.8/173.3 994.5/155.3
2.3 Axle loading,unladen front/rear lbs 334.1/375 350/413.6
Wheels、Chassis 3.1 Type:solid rubber,superelastic,pneumatic,polyurethane pneumatic pneumatic
3.2 Tyres size,front 6.50-10-10PR 6.50-10-10PR
3.3 Tyres size,rear 5.00-8-10PR 5.00-8-10PR
3.5 Wheels,number front/rear (×=driven wheels) 2×/2 2×/2
3.6 Track width,front b10(in) 38.2 38.2
3.7 Track width,rear b11(in) 36.2 36.2
Basic Dimemsions 4.1 Mast/fork carriage tilt forward/backward α/β(°) 6/10 6/10
4.2 lowered mast height h1(in) 79.1 79.1
4.3 Free lift h2(in) 4.9 4.9
4.4 Lift height h3(in) 118.1 118.1
4.5 Extended mast height h4(in) 153.0 153.0
4.7 Overhead load guardheight h6(in) 86.2 86.2
4.8 Seat height/standing height h7(in) 43.7 43.7
4.12 Coupling height h10(in) 11.4 11.4
4.19 Overall length l1(in) 117.4 117.4
4.20 Length to face of forks l2(in) 81.1 81.1
4.21 Overall width b1(in) 45.3 45.3
4.22 Fork dimensions s/e/l(in) 1.4/3.9/36.2 1.4/3.9/36.2
4.24 Fork carriage width b3(in) 36.2 36.2
4.31 Ground clearance ,laden,under mast m1(in) 3.9 3.9
4.32 Ground clearance,centre of wheelbase m2(in) 4.3 4.3
4.33 Aisle width for pallets 1000×1200 crossways Ast(in) 124.4 124.4
4.34 Aisle width for pallets 800×1200 lengthways Ast(in) 132.3 132.3
4.35 Turning radius Wa(in) 71.7 71.7
 Performance Data 5.1 Travel speed,laden/unladen mph 13/15 13/15
5.2 Lift speed,laden/unladen fpm 6.3/8.3 6.3/8.3
5.3 lowering speed,laden/unladen fpm <11.8 <11.8
5.5 Drawbar pull,laden/unladen S2 60 min blf 2925 2925
5.8 Max.Gradient performance,laden/unladen S2 5 min % 13/15 13/15
5.10 Service brake Hydraulic Hydraulic
E-Motor 6.1 Drive motor rating S2 60 min hp 9.1 9.1
6.2 Lift motor rating at S3 15% hp 11.5 11.5
6.3 Battery standard DIN DIN
6.4 Battery voltage,nominal capacity K5 V/Ah 48/400
(48/450/450)
48/450
(48/500)
6.5 Battery weight lbs 1529 1529
Battery dimensions l/w/h in 38.6/15.7/29.9 38.6/15.7/29.9
Other Details 8.1 Type of drive control AC AC
8.2 Operating pressure for attachments psl 2.5 2.5
8.3 Oil volume for attachments gmp 570.6 570.6
8.4 Sound level at driver’s ear according to EN 12 053  dB(A) 73 73
Identification 1.1 Manufacture(abbreviation) Noblellift Noblellift
1.2 Manufacturer’s type designation FE4P44N FE4P55N
1.3 Drive:electric(battery or mains),diesel,petrol gas,manual) electric electric
1.4 Type of operation(hand,pedestrian,standing,seated,order-picker) seated seated
1.5 Load capacity/rated load Q(lbs) 4400 5500
1.6 Load centre distance C(in) 19.7 19.7
1.8 Load distance,centre of drive axle to fork x(in) 18.2 18.4
1.9 wheelbase y(in) 59.1 59.1
 Weights 2.1 Service weight incl. battery(see line 6.5) lbs 9020 9372
2.2 Axle loading ,laden front/rear lbs 1192.5/180 1354.5/168.8
2.3 Axle loading,unladen front/rear lbs 463.5/483.8 436.5/552
Wheels、Chassis 3.1 Type:solid rubber,superelastic,pneumatic,polyurethane pneumatic pneumatic
3.2 Tyres size,front 23×9-10-18PR 23×9-10-18PR
3.3 Tyres size,rear 18×7-8-14PR 18×7-8-14PR
3.5 Wheels,number front/rear(×=driven wheels) 2×/2 2×/2
3.6 Track width,front b10(in) 40.9 40.9
3.7 Track width,rear b11(in) 37.4 37.4
Basic Dimemsions 4.1 Mast/fork carriage tilt forward/backward α/β(°) 6/10 6/10
4.2 lowered mast height h1(in) 80.5 80.5
4.3 Free lift h2(in) 4.7 4.7
4.4 Lift height h3(in) 118.1 118.1
4.5 Extended mast height h4(in) 156.6 156.6
4.7 Overhead load guardheight h6(in) 86.2 86.2
4.8 Seat height/standing height h7(in) 41.7 41.7
4.12 Coupling height h10(in) 11.6 11.6
4.19 Overall length l1(in) 133.8 133.8
4.20 Length to face of forks l2(in) 91.5 91.7
4.21 Overall width b1(in) 49.6 49.6
4.22 Fork dimensions s/e/l(in) 1.6/4.7/42.1 1.6/4.7/42.1
4.24 Fork carriage width b3(in) 40.9 40.9
4.31 Ground clearance ,laden,under mast m1(in) 4.3 4.3
4.32 Ground clearance,centre of wheelbase m2(in) 4.7 4.7
4.33 Aisle width for pallets 1000×1200 crossways Ast(in) 141.1 141.3
4.34 Aisle width for pallets 800×1200 lengthways Ast(in) 146.2 146.4
4.35 Turning radius Wa(in) 80.7 80.7
 Performance Data 5.1 Travel speed,laden/unladen mph 13/14 13/14
5.2 Lift speed,laden/unladen fpm 6.1/7.9 5.9/7.7
5.3 lowering speed,laden/unladen fpm <11.8 <11.8
5.5 Drawbar pull,laden/unladen S2 60 min blf 742.5/517.5 742.5/517.5
5.8 Max.Gradient performance,laden/unladen S2 5 min % 13/14 13/14
5.10 Service brake Hydraulic Hydraulic
E-Motor 6.1 Drive motor rating S2 60 min hp 14.7 14.7
6.2 Lift motor rating at S3 15% hp 11.5 11.5
6.3 Battery standard BS BS
6.4 Battery voltage,nominal capacity K5 V/Ah 48/600
(48/630/700/770)
48/600
(48/630/700/770)
6.5 Battery weight lbs 2083.4 2083.4
Battery dimensions l/w/h in 38.6/21.2/29.9 38.6/21.2/29.9
Other Details 8.1 Type of drive control AC AC
8.2 Operating pressure for attachments psl 2537.5 2537.5
8.3 Oil volume for attachments gmp 570.6 570.6
8.4 Sound level at driver’s ear according to EN 12 053  dB(A) 72 73
Identification 1.1 Manufacture(abbreviation) Noblellift Noblellift
1.2 Manufacturer’s type designation FE4P66N FE4P77N
1.3 Drive:electric(battery or mains),diesel,petrol gas,manual) electric electric
1.4 Type of operation(hand,pedestrian,standing,seated,order-picker) seated seated
1.5 Load capacity/rated load Q(lbs) 6600 7700
1.6 Load centre distance C(in) 19.7 19.7
1.8 Load distance,centre of drive axle to fork x(in) 18.4 18.4
1.9 wheelbase y(in) 65 65
 Weights 2.1 Service weight incl. battery(see line 6.5) lbs 10758 11748
2.2 Axle loading ,laden front/rear lbs 1590.8/184.5 1755/234
2.3 Axle loading,unladen front/rear lbs 502.3/609.1 502.3/711.4
Wheels、Chassis 3.1 Type:solid rubber,superelastic,pneumatic,polyurethane pneumatic superelastic
3.2 Tyres size,front 23×9-10-18PR 23×10-12
3.3 Tyres size,rear 18×7-8-14PR 18×7-8
3.5 Wheels,number front/rear(×=driven wheels) 2×/2 2×/2
3.6 Track width,front b10(in) 40.9 41.7
3.7 Track width,rear b11(in) 37.8 37.8
Basic Dimemsions 4.1 Mast/fork carriage tilt forward/backward α/β(°) 6/10 6/10
4.2 lowered mast height h1(in) 80.5 80.5
4.3 Free lift h2(in) 4.9 4.9
4.4 Lift height h3(in) 118.1 118.1
4.5 Extended mast height h4(in) 156.6 156.6
4.7 Overhead load guardheight h6(in) 86.2 86.2
4.8 Seat height/standing height h7(in) 43.7 43.7
4.12 Coupling height h10(in) 11.6 11.6
4.19 Overall length l1(in) 141.9 143.5
4.20 Length to face of forks l2(in) 99.8 101.4
4.21 Overall width b1(in) 49.6 50.8
4.22 Fork dimensions s/e/l(in) 1.8/4.9/42.1 2/4.9/42.1
4.24 Fork carriage width b3(in) 44.9 44.9
4.31 Ground clearance ,laden,under mast m1(in) 4.3 4.3
4.32 Ground clearance,centre of wheelbase m2(in) 4.7 4.7
4.33 Aisle width for pallets 1000×1200 crossways Ast(in) 156.9 159.6
4.34 Aisle width for pallets 800×1200 lengthways Ast(in) 162.0 164.8
4.35 Turning radius Wa(in) 87.8 90.6
 Performance Data 5.1 Travel speed,laden/unladen mph 13/14 12/13
5.2 Lift speed,laden/unladen fpm 6.1/7.9 5.9/7.7
5.3 lowering speed,laden/unladen fpm <11.8 <11.8
5.5 Drawbar pull,laden/unladen S2 60 min blf 787.5/562.5 855/630
5.8 Max.Gradient performance,laden/unladen S2 5 min % 13/15 13/15
5.10 Service brake Hydraulic Hydraulic
E-Motor 6.1 Drive motor rating S2 60 min hp 20.1 20.1
6.2 Lift motor rating at S3 15% hp 13.4 13.4
6.3 Battery standard DIN DIN
6.4 Battery voltage,nominal capacity K5 V/Ah 80/500
80/560(option)
80/500
80/560(option)
6.5 Battery weight lbs 2970 2970
Battery dimensions l/w/h in 40/27.1/30 40/27.1/30
Other Details 8.1 Type of drive control AC AC
8.2 Operating pressure for attachments psl 2537.5 2537.5
8.3 Oil volume for attachments gmp 570.6 570.6
8.4 Sound level at driver’s ear according to EN 12 053  dB(A) 74 75



Features

ADVANTAGE
Compact and Elegant Design
Excellent Visibility
Ergonomics Details
High Stability
Easy Maintenance
Reliability and Safety
Comfortable Operation
Environmental-friendly
High Efficiency and Low-Energy Consumption

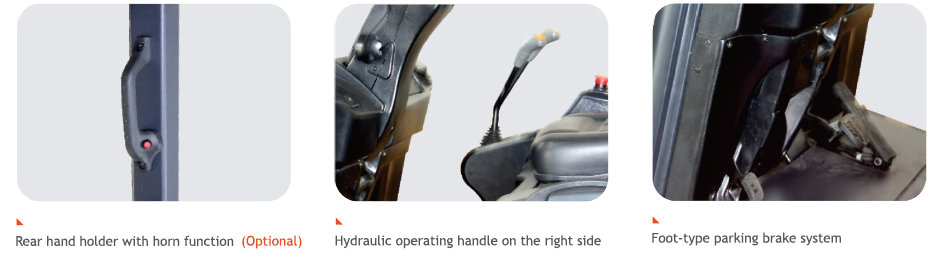

Rear hand holder with horn function
The rear hand holder with horn function, for safe, comfortable operation and positioning for the operators during backing.
Hydraulic operating handle on the right side, enhanced with ergonomic engineering, and greatly improved driver comfort.

Foot-type parking brake system

Foot brake with suspension system, increased operating space at the foot and brake operation comfort for driver.
Foot-type parking brake system, the driver can apply the brake without changing their posture, so long as foot gently steps on the parking brake, driver fatigue can be effectively reduced.

Big LED display
Large LED display with big LED screen; Error code and warning display for easy monitoring of the forklift status.

Reliability and Safety
Motor controllers, contactors, power switch, emergency switch, display, accelerators and other key electrical components made by proven manufacturers.
Advanced AC high frequency integrated MOSFET controller and CAN-bus technology.
High frequency MOSFET integrated controller ensures smooth, accurate driving and lifting, excellent acceleration, motor and controller performance matching delivers safety and reliability; such as regenerative braking and reverse connection ramp anti-slipping.
Operation sequence protection and electronic self-protection function,
Emergency power off switch as standard configuration, meets the European safety norms.

Low noise and environmental-friendly

Cushioning devices added to motor, batteries and other locations, as well as the optimization of vehicle body frame structure, reducing the vibration of the truck;
Low-noise pump together with load sensing steering gear, makes the truck noise extremely low
Descending speed will automatically slow down before the fork lowered to the minimum height, so it substantially reduces the impact noise.
Rear axle using the flexible shock absorption system, effective filtrating the ground clutters, makes the driver much comfortable.

Excellent appearance design
The exceptional, dynamic, elegant design makes the N Series a desirable ride for the operators, the robust metal molding of the exterior covers delivers styling as well as safety.

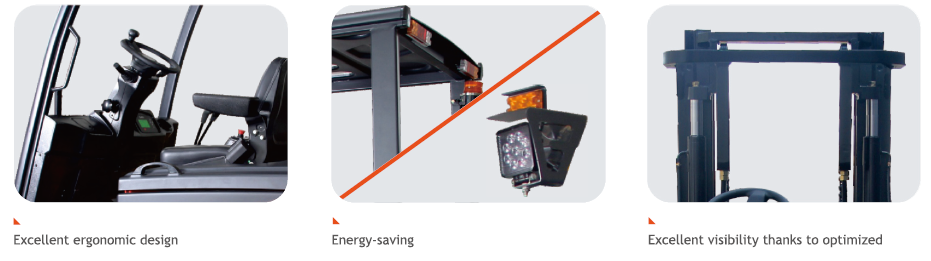

Excellent ergonomic design

The ergonomically designed, inclining adjustable small-diameter steering wheel and combined switches, makes the forklift easy to operate. The back-and-forth adjustable seat allows the operator to select the optimum driving position.
Large grab handle meets the needs of operators who vary in height, making it more comfortable.
The super low torque steering gear means the steering is more light and responsive.

Energy-saving
Standard equipped with LED lights, saving on average 80% more energy.

High Efficiency and Energy-saving

Different speed modes to choose from for different applications and different environments.
Standard DC converter is balanced using batteries, extending battery life.
High efficiency AC power system, offering complete protection, comes with speed sensor, temperature sensor which greatly improves reliability and life expectancy.
Special tire patterns for electric forklifts, saving more than 10% more energy for driving (optional).

Excellent visibility thanks to optimized mast concept
With its optimized mast concept and arrangement of the hydraulic pipes, as well as the other parts, together with the large opening of the fork carriage, the operator view is much better and more comfortable for safe operation.
Large arch overhead cabin guard, and grid plates with a comfortable angle, the driver’s view through the above cabin is greatly increased.
Small-diameter steering wheel and other instruments located further right, reducing the height of the instrument bench, effectively increasing the visibility of the fork tip and goods.
